Propel 470 HEV ROCK

Key Features of Propel 470 HEV ROCK

• GVW

  60000 KG

Specifications of Propel 470 HEV ROCK

• Performance
  • Motor Type
    PMSM
  • Max Speed
    40 KMPH
  • GVW
    60000 KG
  • Max Torque
    2800 NM

• Dimensions
  • Length
    9875 MM
  • Width
    2800 MM
  • Height
    3700 MM
  • Ground Clearance
    305 MM
  • Minimum Turning Radius
    11500 MM
  • Wheelbase
    5900 MM

• Brakes Suspension
  • Front Axle
    Steerable, 9.5T heavy duty I Beam
  • Rear Axle
    48T Tandem, Hub Reduction cast axle
  • Front Suspension
    2 x 9.5 T Parabolic Leaf Spring with Shock Absorber
  • Abs
    Yes
  • Parking Brakes
    Pneumatic Hand Control Valve
  • Rear Suspension
    48 T Inverted Bogie

• Clutch Transmission
  • Steering
    Hydraulic integral power steering
  • Transmission
    7 speed EMT without clutch

• Body Cabin
  • Cabin Type
    Sleeper Cabin
  • Tiltable Steering
    Yes

• Tyre
  • Front Tyre
    12x24 Mining tyre
  • Rear Tyre
    12x24 Mining tyre

• Others
  • Seat Belts
    Yes
  • Fog Lights
    yes
  • Battery
    Li-on
  • Gradeability
    >30 (%)
  • Seat Type
    Air Suspended Driver Seat

• Charging Time
  • Battery Capacity
    256 Kwh

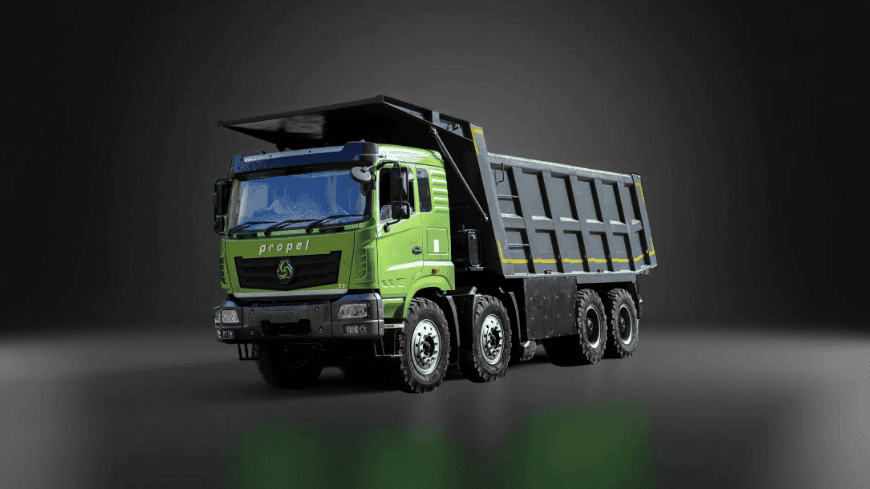

Propel 470 HEV ROCK images
