Eicher Pro 3019

Key Features of Eicher Pro 3019

• Engine

  E494 CRS 3.8L
• Power

  180
• GVW

  18500 KG

Specifications of Eicher Pro 3019

• Performance
  • Max Speed
    80 KMPH
  • Engine Norm
    BS-6
  • GVW
    18500 KG
  • Power
    180
  • Engine Cylinders
    4
  • Gradeability
    25 (%)
  • Mileage
    6.5 KMPL
  • Max Torque
    600 Nm
  • Engine
    E494 CRS 3.8L
  • Fuel Tank
    190/425 Ltrs.

• Dimensions
  • Wheelbase
    4490 MM
  • Ground Clearance
    258 MM
  • Length
    8380 MM
  • Width
    2332 MM
  • Height
    2722 MM
  • Minimum Turning Radius
    16600 MM

• Brakes Suspension
  • Parking Brakes
    Yes
  • Rear Suspension
    Semi elliptical
  • Front Suspension
    Parabolic
  • Front Axle
    Forged I Beam - Reverse Elliot Type
  • Rear Axle
    Heavy duty fully floating single reduction, 395mm drive head
  • Abs
    Standard
  • Brakes
    Dual circuit, Full air S Cam Brakes

• Clutch Transmission
  • Transmission
    Manual
  • Power Steering
    Yes
  • Steering
    Tilt and Telescopic Power Steering
  • Clutch
    362 dia - single plate, dry type with clutch booster
  • Gearbox
    ET 70 S6, 6 Forward + 1 Reverse

• Body Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Arm Rest
    No
  • Chassis Type
    Chassis with Cabin
  • Body Option
    Box body
  • Tiltable Cabin
    Yes
  • Cabin Type
    Sleeper Cabin
  • Tiltable Steering
    Yes

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    295/90R20
  • Rear Tyre
    295/90R20

• Others
  • Navigation System
    No
  • Fog Lights
    yes
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Telematics
    yes
  • Cruise Control
    Yes
  • Battery
    24 V, 120 AH

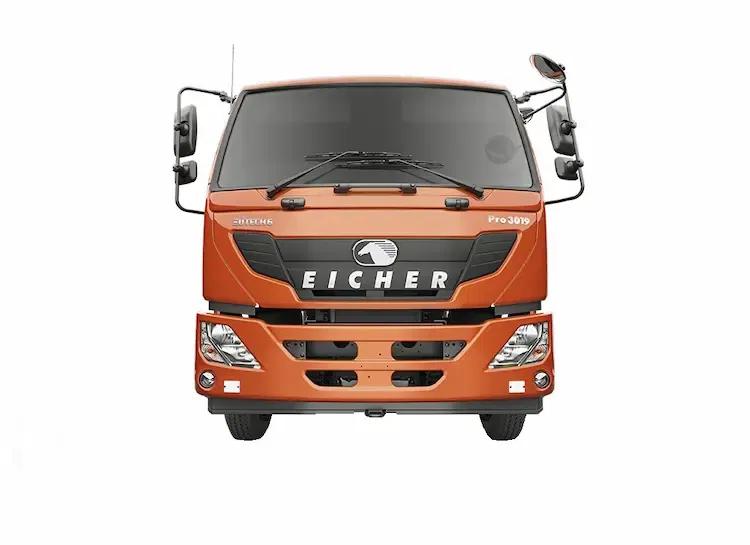

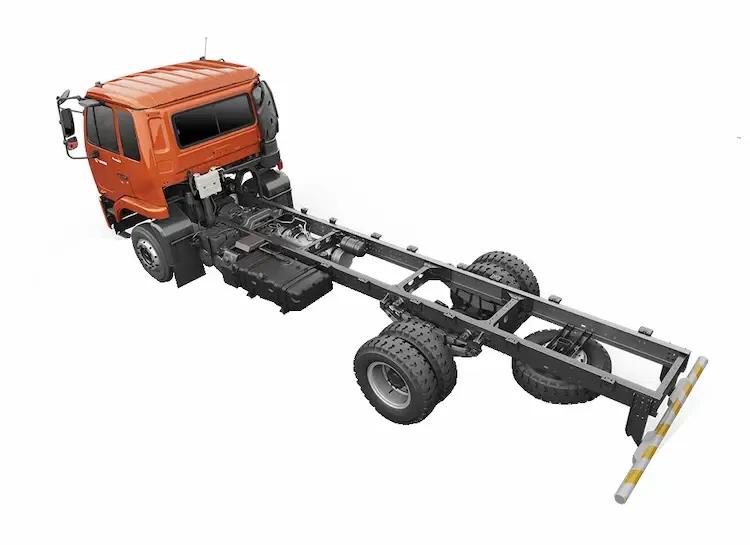

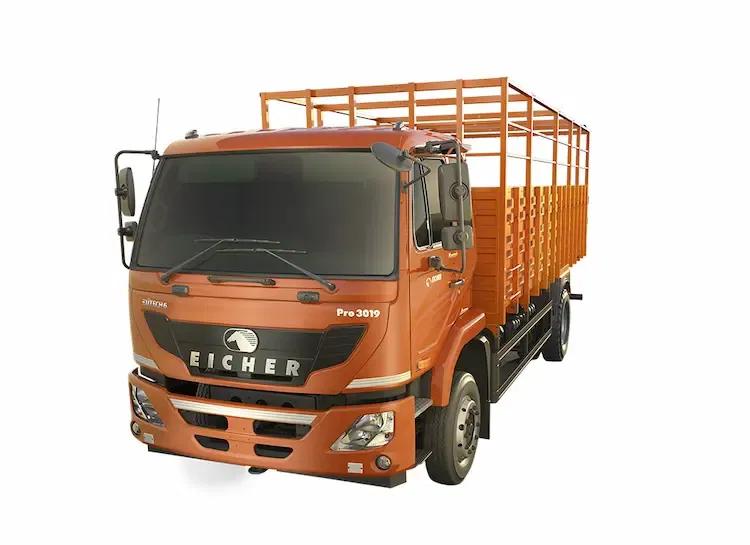

Eicher Pro 3019 images
