BharatBenz 3832R

Key Features of BharatBenz 3832R

• Engine

  6D26 BSVI OBD-II
• Power

  306
• GVW

  38000 KG

Specifications of BharatBenz 3832R

• Performance
  • GVW
    38000 KG
  • Engine
    6D26 BSVI OBD-II
  • Engine Cylinders
    6
  • Max Torque
    1200 Nm
  • Gradeability
    33.7 (%)
  • Max Speed
    80 KMPH
  • Power
    306
  • Fuel Tank
    330 / 310 Ltrs.

• Dimensions
  • Length
    10435 MM
  • Wheelbase
    5900 MM
  • Height
    2930 MM
  • Width
    2490 MM
  • Ground Clearance
    170 MM
  • Minimum Turning Radius
    11350 MM
  • Load Body Size
    27ft

• Brakes Suspension
  • Front Suspension
    Parabolic leaf spring
  • Brakes
    Dual Brakes
  • Front Axle
    Twin steer - IF 7.0 (Forged - Reverse Elliot)
  • Rear Axle
    ELAC controlled dual tyre lift axle + RS440 drive axle (Single reduction fully floating)
  • Rear Suspension
    Semi elliptic multi spring

• Clutch Transmission
  • Steering
    Tilt & Telescopic
  • Gearbox
    G131, 9F + 1R
  • Transmission
    Manual - Synchromesh
  • Power Steering
    Tilt & telescopic

• Body Cabin
  • Tiltable Steering
    Yes
  • Body Option
    Box body
  • Seating Capacity
    Driver+2 Passenger
  • Cabin Type
    Mid Cab (Sleeper)

• Tyre
  • Front Tyre
    295/90R20; 295/80R22.5 (optional)
  • Rear Tyre
    295/90R20; 295/80R22.5 (optional)

• Others
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Driver Info Display
    Yes
  • Battery
    12V 120Ah

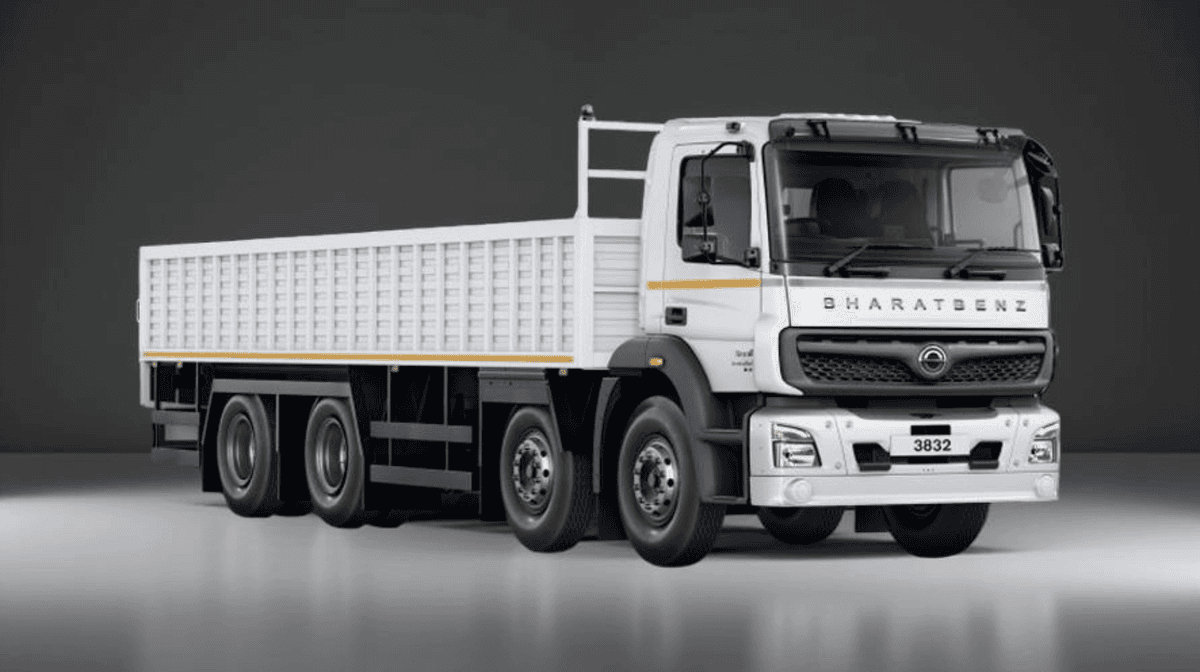

BharatBenz 3832R images
