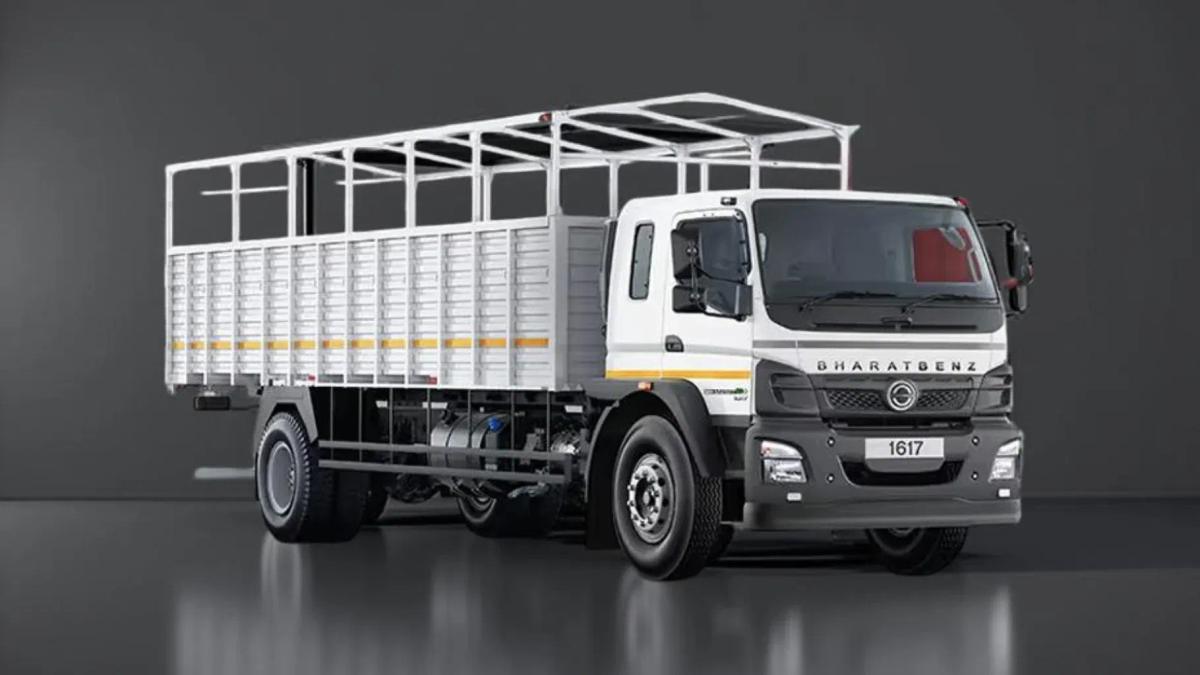

BharatBenz 1617R

Key Features of BharatBenz 1617R

• Engine

  4D34i
• Power

  167
• GVW

  16200 KG
• Payload Capacity

  9750 KG

Specifications of BharatBenz 1617R

• Performance
  • Engine Norm
    BS-6 Phase 2
  • Engine Cylinders
    4
  • Engine
    4D34i
  • Max Speed
    80 KMPH
  • Max Torque
    520 Nm
  • Mileage
    5-6.5 KMPL
  • Gradeability
    26.7 (%)
  • Power
    167
  • Fuel Tank
    214 Ltrs.
  • GVW
    16200 KG
  • Payload Capacity
    9750 KG

• Dimensions
  • Length
    11995 MM
  • Wheelbase
    6700 MM
  • Width
    2335 MM
  • Height
    2600 MM
  • Ground Clearance
    270 MM
  • Minimum Turning Radius
    11300 MM

• Brakes Suspension
  • Brakes
    Pneumatic foot operated dual line brakes
  • Parking Brakes
    Yes
  • Abs
    Yes
  • Front Suspension
    Multileaf Spring
  • Rear Suspension
    Multileaf Spring
  • Rear Axle
    MS 145
  • Front Axle
    IF 6.0

• Clutch Transmission
  • Transmission
    Manual
  • Power Steering
    Yes
  • Clutch
    Single dry plate hydraulic control
  • Gearbox
    6 Forward + 1 Reverse
  • Steering
    Power Steering

• Body Cabin
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Cabin Type
    Day and Sleeper Cabin
  • Seating Capacity
    Driver +1 Passenger

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    10.00 R 20
  • Rear Tyre
    10.00 R 20

• Others
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Driver Info Display
    Yes
  • Battery
    24
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No
