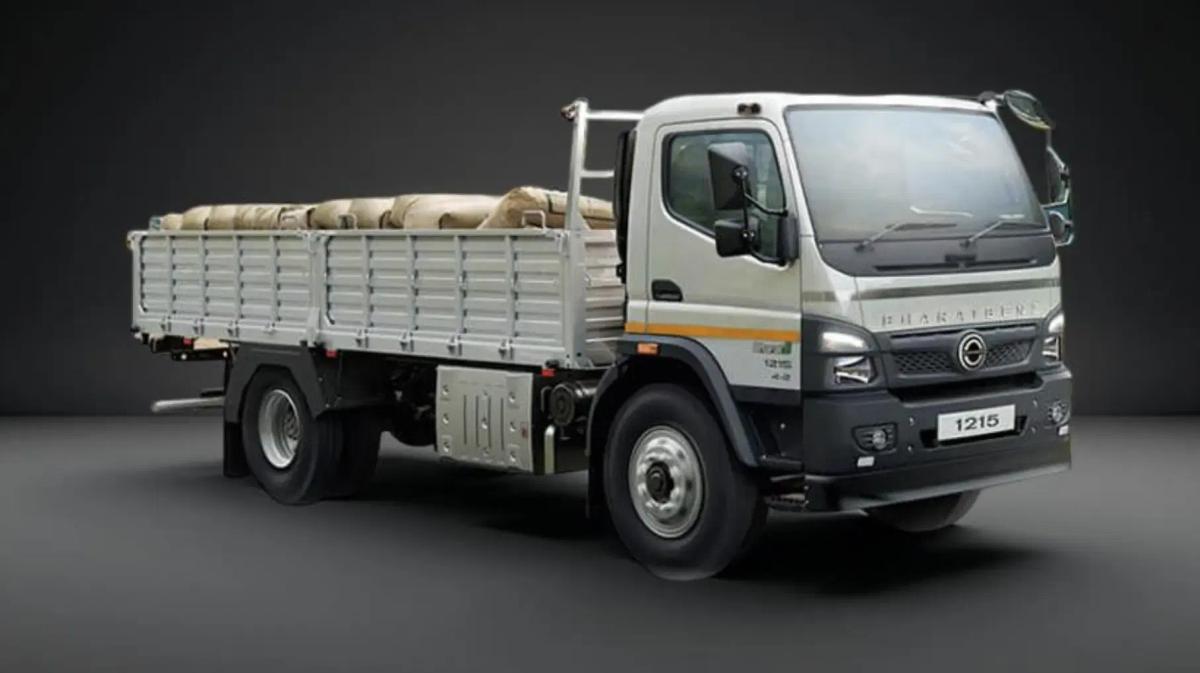

BharatBenz 1215R

Key Features of BharatBenz 1215R

• Engine

  4D34i
• Power

  150
• GVW

  11990 KG
• Payload Capacity

  7000 KG

Specifications of BharatBenz 1215R

• Performance
  • Engine Norm
    BS-6
  • Payload Capacity
    7000 KG
  • Engine
    4D34i
  • Mileage
    7-9 KMPL
  • Max Speed
    80 KMPH
  • Engine Cylinders
    4
  • Gradeability
    37.77/26.07 (%)
  • Fuel Tank
    215/ 200 Ltrs.
  • GVW
    11990 KG
  • Power
    150
  • Max Torque
    460 Nm

• Dimensions
  • Length
    9295 MM
  • Wheelbase
    5050 MM
  • Minimum Turning Radius
    19700 MM
  • Width
    2135 MM
  • Height
    2500 MM
  • Ground Clearance
    245 MM
  • Load Body Size
    24 ft

• Brakes Suspension
  • Brakes
    Pneumatic foot operated dual line brakes
  • Parking Brakes
    Yes
  • Front Suspension
    Multileaf Spring
  • Rear Suspension
    Multileaf Spring
  • Abs
    No
  • Front Axle
    IF 4.5
  • Rear Axle
    Dana S 145

• Clutch Transmission
  • Power Steering
    Yes
  • Gearbox
    Improved G85, 6 Forward + 1 Reverse
  • Transmission
    Mechanical Sychromesh
  • Clutch
    Single dry plate hydraulic actuated
  • Steering
    Single Dry Plate, Hydraulic Actuated

• Body Cabin
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver +1 Passenger

• Tyre
  • Tubeless Tyre
    No
  • Rear Tyre
    8.25 X 20
  • Front Tyre
    8.25 X 20

• Others
  • Driver Info Display
    Yes
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Telematics
    No
  • Cruise Control
    No
  • Battery
    24 v,75Ah
