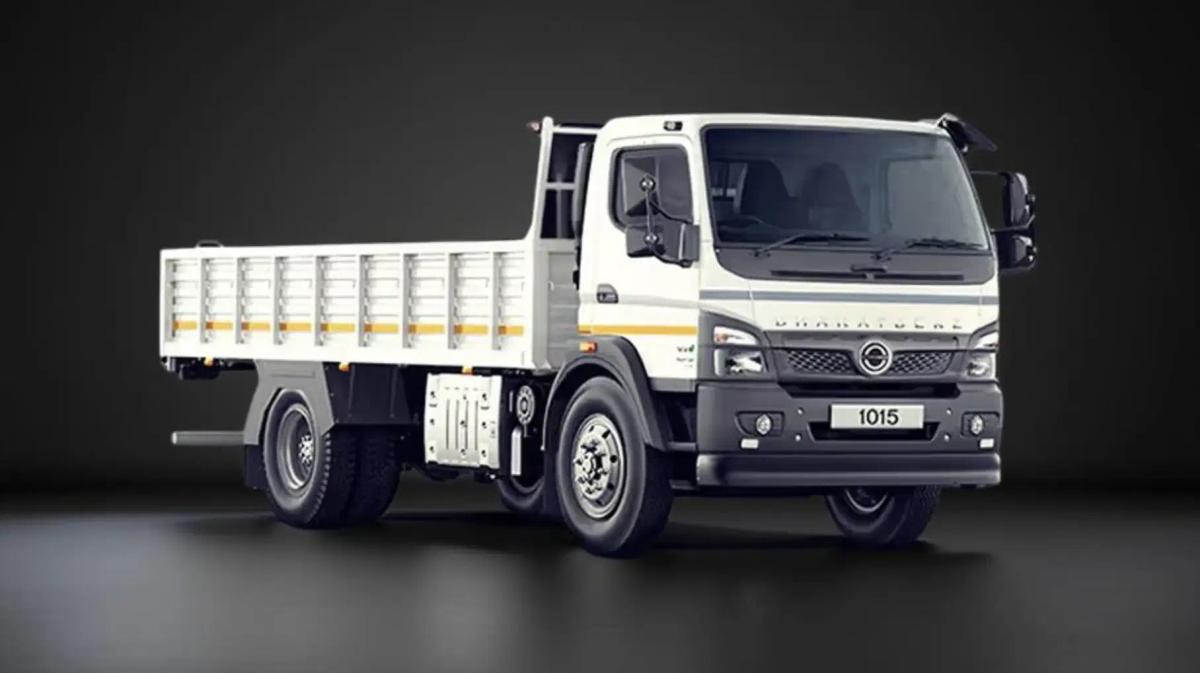

BharatBenz 1015R

Key Features of BharatBenz 1015R

• Engine

  4D34i
• Power

  150
• GVW

  10600 KG
• Payload Capacity

  5624 KG

Specifications of BharatBenz 1015R

• Performance
  • Engine Norm
    BS-6
  • Fuel Tank
    215 Ltrs.
  • Max Torque
    460 Nm
  • Engine
    4D34i
  • Mileage
    8 KMPL
  • Max Speed
    80 KMPH
  • Engine Cylinders
    4
  • Power
    150
  • Gradeability
    24.38 (%)
  • GVW
    10600 KG
  • Payload Capacity
    5624 KG

• Dimensions
  • Minimum Turning Radius
    13800 MM
  • Wheelbase
    3760 MM
  • Width
    2135 MM
  • Load Body Size
    17 ft
  • Length
    6985 MM
  • Height
    2420/ 2390 MM
  • Ground Clearance
    205/ 175 MM

• Brakes Suspension
  • Brakes
    Pneumatic foot operated dual line brakes
  • Parking Brakes
    Spring Actuated with Hand Brake Valve @ Cab
  • Front Suspension
    Multileaf Spring
  • Rear Suspension
    Multileaf Spring
  • Abs
    No
  • Front Axle
    IF 3.6
  • Rear Axle
    Dana S 130

• Clutch Transmission
  • Power Steering
    Yes
  • Steering
    Hydraulic Power Assisted
  • Clutch
    Single dry plate hydraulic actuated, 330
  • Gearbox
    MO36, 6 Forward + 1 Reverse
  • Transmission
    Mechanical Sychromesh

• Body Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Cabin Type
    Day Cabin
  • Tiltable Steering
    No
  • Arm Rest
    No
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin

• Tyre
  • Tubeless Tyre
    No
  • Front Tyre
    Nylon Tyres (8.25x16) Tubeless Tyres ( 235/75R17.5)
  • Rear Tyre
    Nylon Tyres (8.25x16) Tubeless Tyres ( 235/75R17.5)

• Others
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Battery
    24
  • Air Condition
    No
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No
