Ashok Leyland 5532 AN

Key Features of Ashok Leyland 5532 AN

• Engine

  A series with LNG+CNg
• Power

  320
• GVW

  55000 KG

Specifications of Ashok Leyland 5532 AN

• Performance
  • Engine
    A series with LNG+CNg
  • Max Speed
    80 KMPH
  • GVW
    55000 KG
  • Engine Cylinders
    6
  • Power
    320
  • Max Torque
    1200 Nm

• Dimensions
  • Wheelbase
    3900 MM
  • Minimum Turning Radius
    40300 MM

• Brakes Suspension
  • Rear Suspension
    Non-reactive suspension (NRS)
  • Parking Brakes
    Yes
  • Front Axle
    Forged I beam reverse Elliot type
  • Rear Axle
    Fully floating single speed rear axle
  • Front Suspension
    Parabolic leaf spring

• Clutch Transmission
  • Gearbox
    9 Forward + 1 Reverse
  • Transmission
    Synchromesh
  • Steering
    Power Steering
  • Power Steering
    Yes
  • Clutch
    430 mm Dia Dry Friction Clutch

• Others
  • Driver Info Display
    Yes
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Fog Lights
    yes

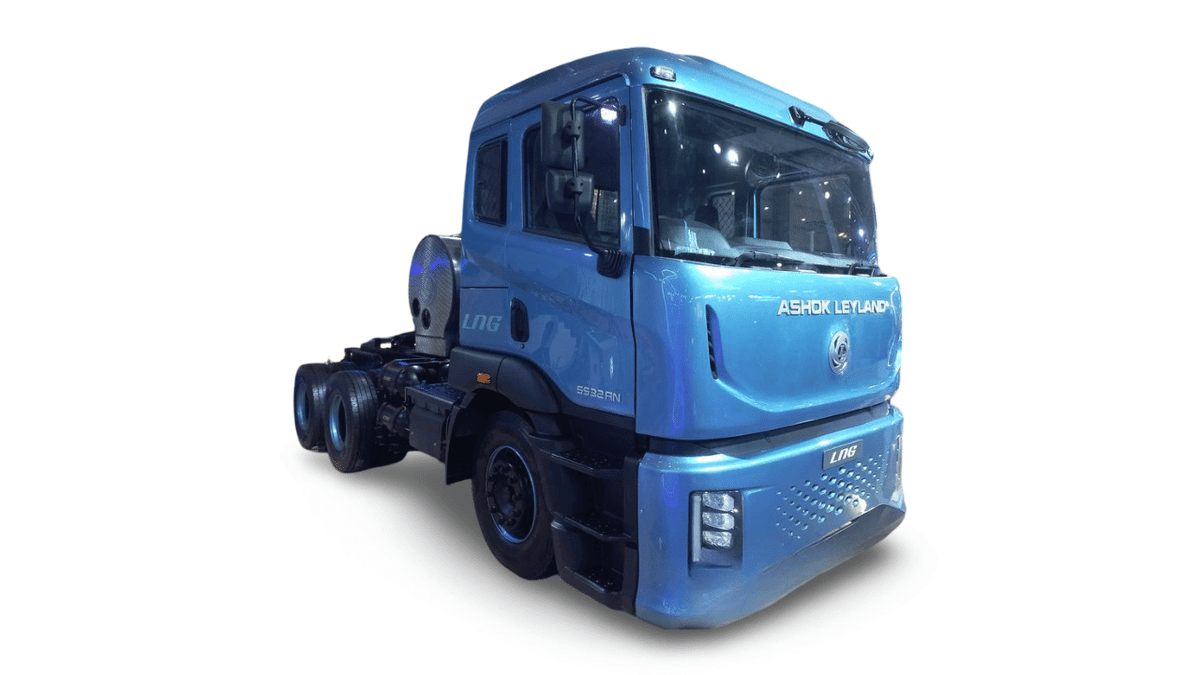

Ashok Leyland 5532 AN images
