Swaraj 843 XM

Key Features of Swaraj 843 XM

• No. Of Cylinder

  4
• Power

  45
• Capacity (cc)

  2730 CC
• PTO Power

  38.4
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1200 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 843 XM

• Engine
  • Engine Rated RPM
    1900 RPM
  • Capacity (cc)
    2730 CC
  • No. Of Cylinder
    4
  • Cooling Type
    Water Cooled
  • Power
    45
  • Air Filter
    3- Stage Oil Bath Type

• Power Take Off (PTO) & Steering
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540
  • PTO Power
    38.4

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single / Dual clutch
  • Battery
    12 V 88 Ah
  • Forward Speed
    2.3 - 29.3 kmph
  • Reverse Speed
    2.7 - 10.6 kmph
  • Alternator
    starter motor

• Hydraulics & Brakes
  • Lifting Capacity
    1200 Kg
  • Brakes
    Oil immersed Brakes
  • 3 point Linkage
    ADDC, I and II type implement pins.

• Dimension & Capacity
  • Overall Length
    3460 MM
  • Overall Width
    1740 MM
  • Fuel Tank Capacity
    60 litre
  • Total Weight
    1830 KG
  • Ground Clearance
    293 MM
  • Wheel Base
    2055 MM

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 X 28
  • Wheel Drive
    2 WD

• Others
  • Accessories
    Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar
  • Warranty
    6000 Hours or 6 Year

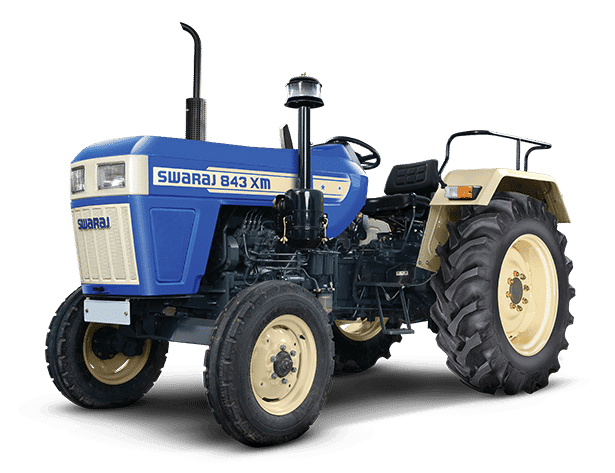

Swaraj 843 XM images
