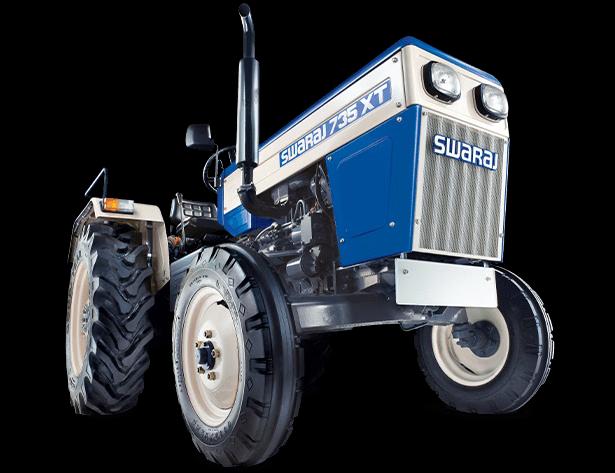

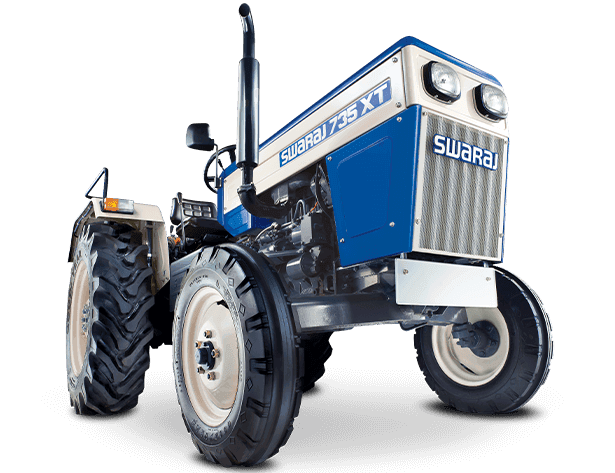

Swaraj 735 XT

Key Features of Swaraj 735 XT

• No. Of Cylinder

  3
• Power

  40
• Capacity (cc)

  2734 CC
• PTO Power

  32.6
• Fuel Tank Capacity

  45 litre
• Lifting Capacity

  1200 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 735 XT

• Engine
  • Cooling Type
    Water Cooled
  • Engine Rated RPM
    1800 RPM
  • Power
    40
  • No. Of Cylinder
    3
  • Fuel Pump
    Direct
  • Air Filter
    3 Stage Oil Bath Type
  • Capacity (cc)
    2734 CC

• Power Take Off (PTO) & Steering
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540
  • PTO Power
    32.6

• Transmission
  • Clutch Type
    Single / Dual clutch
  • Battery
    12 V 88 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Forward Speed
    2.2 – 28.5 kmph
  • Reverse Speed
    2.70 - 10.50 kmph
  • Alternator
    starter motor

• Hydraulics & Brakes
  • Brakes
    Oil immersed Brakes
  • Lifting Capacity
    1200 Kg
  • 3 point Linkage
    ADDC, Cat- 1 & II

• Dimension & Capacity
  • Ground Clearance
    385 MM
  • Overall Width
    1730 MM
  • Total Weight
    1930 KG
  • Wheel Base
    1925 MM
  • Overall Length
    3385 MM
  • Fuel Tank Capacity
    45 litre

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 X 28
  • Wheel Drive
    2 WD

• Others
  • Warranty
    2000 Hour or 2 Year
