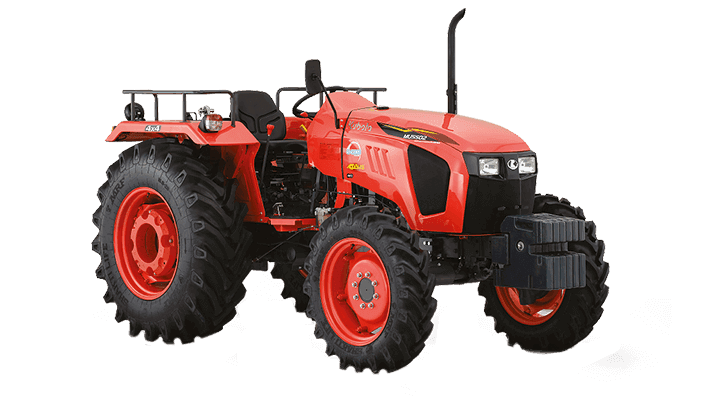

Kubota MU 5502 4WD

Key Features of Kubota MU 5502 4WD

• No. Of Cylinder

  4
• Power

  50
• Capacity (cc)

  2434 CC
• PTO Power

  47
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  1800 / 2100 Kg
• Wheel Drive

  4 WD

Specifications of Kubota MU 5502 4WD

• Engine
  • Power
    50
  • Capacity (cc)
    2434 CC
  • Fuel Pump
    29.2 lpm
  • Air Filter
    Dry type with dual element
  • No. Of Cylinder
    4
  • Cooling Type
    Liquid Cooled
  • Engine Rated RPM
    2300 RPM

• Power Take Off (PTO) & Steering
  • PTO Power
    47
  • PTO RPM
    540 @2160 ERPM ECO : 750 @2200 ERPM

• Transmission
  • Gear Box
    12 Forward + 4 Reverse
  • Clutch Type
    Double Clutch
  • Battery
    12 VOLT
  • Alternator
    55 AMP
  • Forward Speed
    1.8 - 30.8 kmph
  • Reverse Speed
    5.1 - 14.0 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    Draft, position and response control
  • Tuning Radius with Brakes
    2900 MM
  • Lifting Capacity
    1800 / 2100 Kg
  • Brakes
    Oil Immersed Multi Disc Brakes

• Dimension & Capacity
  • Fuel Tank Capacity
    65 litre
  • Overall Width
    1965 MM
  • Ground Clearance
    420 MM
  • Wheel Base
    2050 MM
  • Overall Length
    3715 MM
  • Total Weight
    2,560 KG

• Wheels & Tyres
  • Front Tyre Size
    9.50 x 24
  • Wheel Drive
    4 WD
  • Read Tyre Size
    16.9 X 28

• Others
  • Warranty
    5000 Hours / 5 Year
