Kartar 4536 Plus

Key Features of Kartar 4536 Plus

• No. Of Cylinder

  3
• Power

  45
• Capacity (cc)

  3120 CC
• PTO Power

  39.29
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1800 Kg
• Wheel Drive

  2 WD

Specifications of Kartar 4536 Plus

• Engine
  • Capacity (cc)
    3120 CC
  • No. Of Cylinder
    3
  • Power
    45
  • Engine Rated RPM
    2000 RPM
  • Cooling Type
    Water Cooled
  • Air Filter
    Dry Type
  • Torque
    188 Nm

• Power Take Off (PTO) & Steering
  • PTO RPM
    540
  • PTO Power
    39.29

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Dual Clutch
  • Battery
    12 V 88 Ah
  • Alternator
    36Ah ,12V
  • Forward Speed
    2.60 - 33.48 kmph
  • Reverse Speed
    3.68 - 14.50 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    1800 Kg
  • Brakes
    Oil immersed Brakes
  • 3 point Linkage
    ADDC

• Dimension & Capacity
  • Ground Clearance
    400 MM
  • Fuel Tank Capacity
    55 litre
  • Wheel Base
    2150 MM
  • Total Weight
    2015 KG
  • Overall Length
    3765 MM
  • Overall Width
    1808 MM

• Wheels & Tyres
  • Read Tyre Size
    14.9 x 28
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.5 x 16

• Others
  • Warranty
    2000 Hours / 2 Year

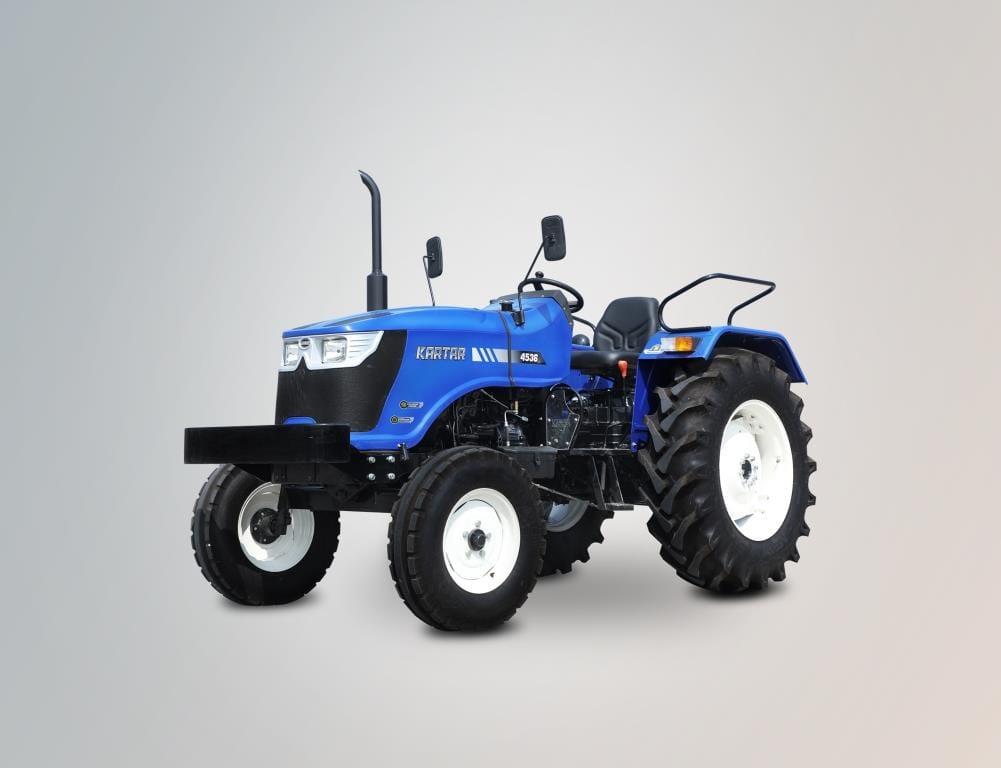

Kartar 4536 Plus images
